LR049990 Brass Thermostat Outlet Hose Connector Kit

The thermostat water outlet connection is one of those small joints that quietly does a very large job. This connector kit services that connection on supercharged AJ126 3.0 liter V6 and AJ133 5.0 liter V8 Rovers, giving you the barb fitting, the sealing O ring, and the retainer clip in one package so the coolant joint goes back together properly the first time.

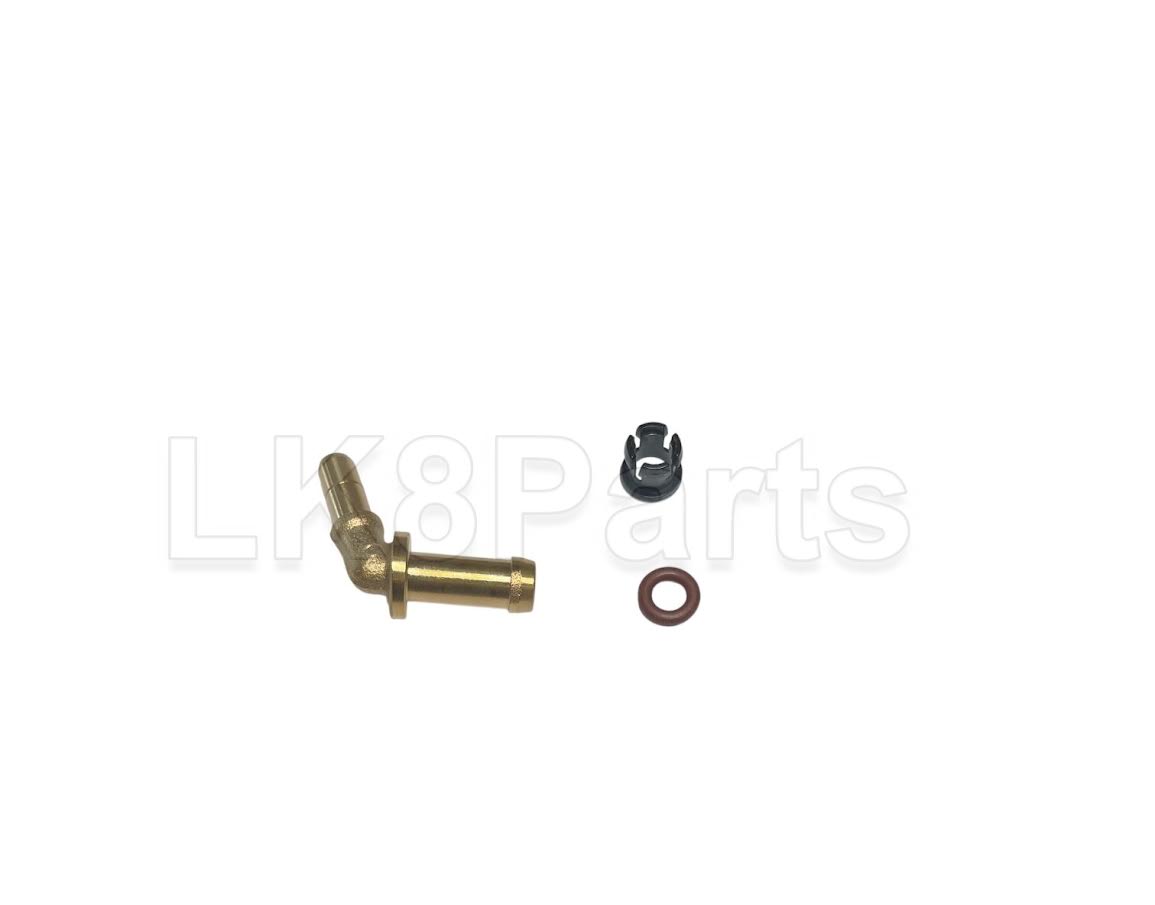

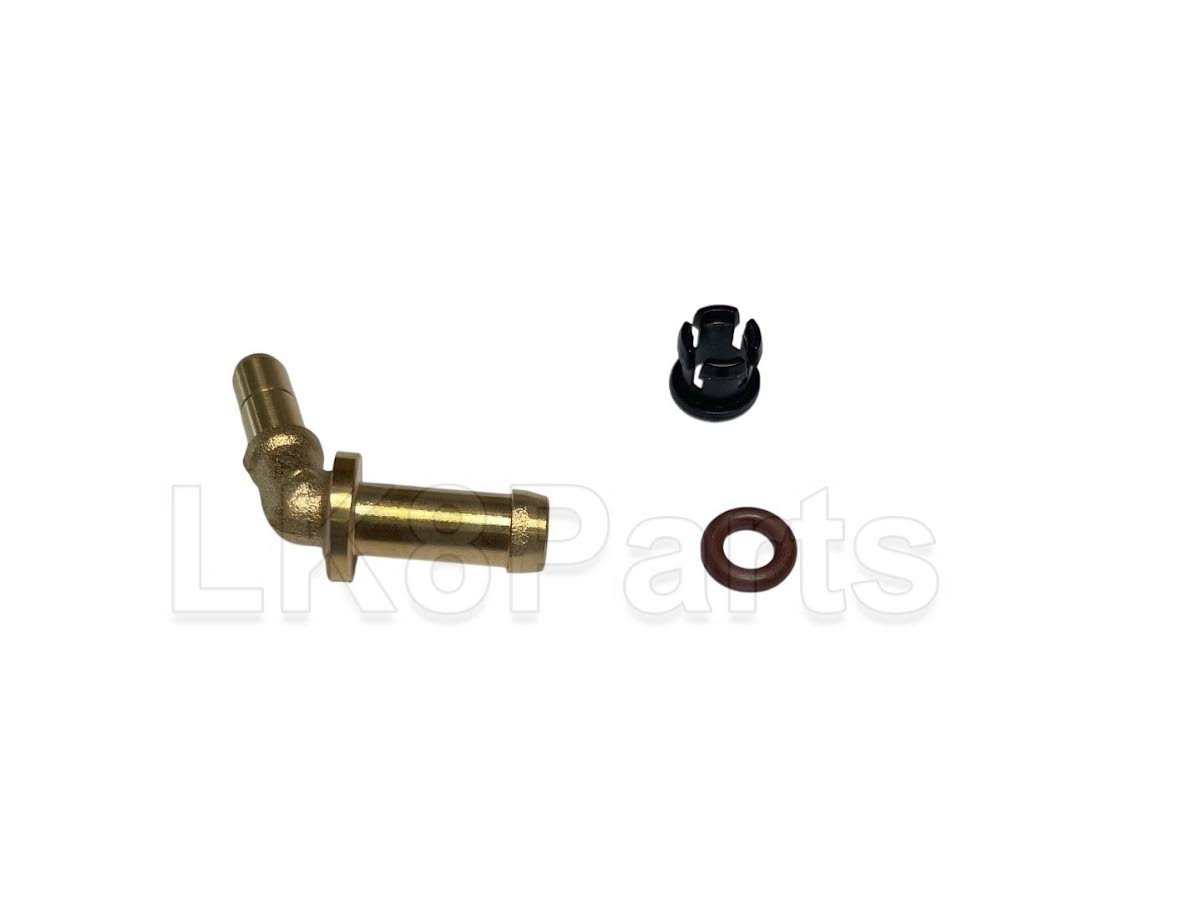

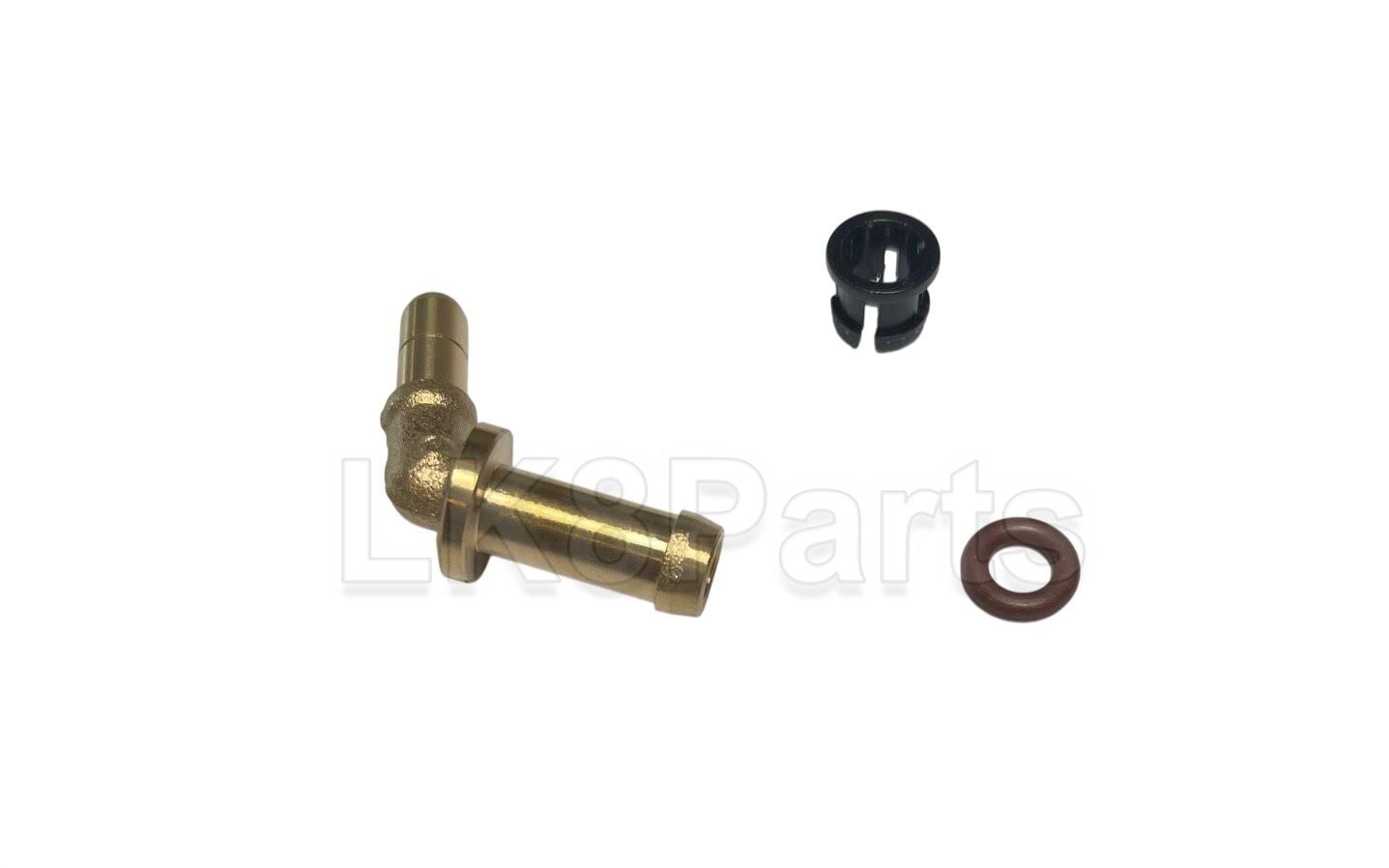

The barb in this kit is machined from brass, which holds its shape under the heat and pressure cycling that a running cooling system produces. The O ring seals the fitting into the housing, and the plastic retainer locks it in place so it cannot back out under system pressure. All three pieces are included, so there is no hunting for a separate seal or clip once the old fitting is out.

This is a serviceable joint, which means most of the work is access rather than difficulty. With the cooling system depressurized and drained to the correct level, the retainer releases, the old fitting comes out, and the new brass barb seats with a fresh O ring. Lubricate the O ring with clean coolant before installation, seat the fitting fully, confirm the retainer has locked, then refill and bleed the system per the factory procedure and check for leaks at operating temperature.

Fitment covers the supercharged petrol/gas engines used across the L405 Range Rover, L494 Range Rover Sport, the 2014 to 2016 LR4 L319, the L462 Discovery 5, and the L560 Range Rover Velar.

Fits:
Range Rover L405 (2013 to 2022) 3.0 liter AJ126 Supercharged V6 Petrol/Gas
Range Rover L405 (2013 to 2022) 5.0 liter AJ133 Supercharged V8 Petrol/Gas
Range Rover Sport L494 (2014 to 2022) 3.0 liter AJ126 Supercharged V6 Petrol/Gas
Range Rover Sport L494 (2014 to 2022) 5.0 liter AJ133 Supercharged V8 Petrol/Gas
LR4 L319 (2014 to 2016) 3.0 liter AJ126 Supercharged V6 Petrol/Gas
Discovery 5 L462 3.0 liter AJ126 Supercharged V6 Petrol/Gas
Range Rover Velar L560 (2018 to 2020) 3.0 liter AJ126 Supercharged V6 Petrol/Gas

Part Number: LR049990
Free shipping to the lower 48!

[Supersession Part Numbers]

Supersessions LR048474, LR045236.

[FAQ]

What comes in the kit?

You receive the brass barb fitting, the O ring that seals it, and the plastic retainer clip that locks it into place. Everything needed to rebuild the one joint is in the package.

Will this fit my diesel Range Rover?

No. This kit is specific to the supercharged petrol/gas engines, meaning the AJ126 3.0 liter V6 and the AJ133 5.0 liter V8. Confirm your engine code before ordering if you are unsure which engine your Rover has.

Do I need to drain the whole cooling system to install it?

You do not need to drain the entire system, but you must depressurize it and lower the coolant level below the joint before opening it. Refill and bleed the system per the factory procedure afterward, then check the joint for leaks once the Rover reaches operating temperature.

Part number LR049990BFK
